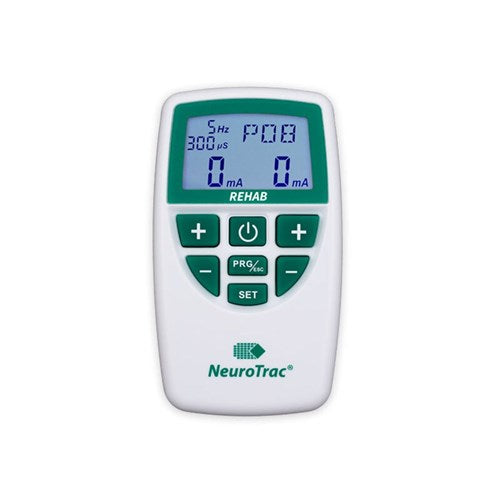

NeuroTrac Rehab NMES – Dual Channel TENS & Muscle Stimulator

Support muscle rehabilitation, pain management and recovery with the NeuroTrac Rehab NMES, a versatile dual-channel electrotherapy device designed for both home and clinical use.

Combining TENS (Transcutaneous Electrical Nerve Stimulation) and NMES (Neuromuscular Electrical Stimulation) in one compact unit, the NeuroTrac Rehab allows users to manage pain while also supporting muscle activation, strengthening and rehabilitation.

With two independently controlled channels, multiple preset programmes, customisable settings and a wired remote hand switch, the device provides flexible treatment options for physiotherapy, rehabilitation, sports recovery and ongoing pain management.

Why Choose the NeuroTrac Rehab NMES?

The NeuroTrac Rehab is designed for users who need more flexibility than a standard TENS machine. Its combination of TENS and NMES programmes makes it suitable for a wide range of rehabilitation applications, from pain relief to muscle stimulation.

The large keypad and illuminated LCD display make settings easy to view and adjust, while its lightweight design allows the unit to be used conveniently at home, in a clinic or while travelling.

When the device is locked, it can also record treatment usage time and average current, providing useful information for clinicians supervising rehabilitation programmes.

Key Features

• Dual-channel TENS and NMES stimulation
• Two individually isolated output channels
• 10 preset TENS programmes
• 10 preset NMES programmes
• 2 customisable TENS programmes
• 1 customisable remote stimulation programme
• Includes a wired remote hand button
• Records treatment usage time and average current when locked
• Bright backlit LCD display
• Large, easy-to-use keypad buttons
• Compact and lightweight design
• Adjustable pulse width from 50–450 μs
• Adjustable pulse rate from 2–200 Hz
• Continuous, Burst and Modulated stimulation modes
• Constant-current stimulation
• Maximum output voltage up to 180 V
• Open-electrode detection automatically resets output current to zero if an open circuit is detected
• Low-battery indicator

TENS & NMES in One Device

TENS – Pain Management

TENS uses controlled electrical stimulation through electrodes placed on the skin and may assist with the management of certain types of acute and chronic pain.

The NeuroTrac Rehab provides multiple preset and customisable TENS programmes, allowing treatment parameters to be selected according to individual requirements or professional guidance.

NMES – Muscle Rehabilitation

NMES is designed to electrically stimulate muscles and may assist with muscle activation and rehabilitation where muscular weakness or reduced activation is present.

It can be incorporated into rehabilitation programmes following injury, surgery or periods of reduced muscular activity when clinically appropriate.

Suitable Applications

• Muscle rehabilitation
• Sports-related muscle recovery
• Muscular weakness following injury or surgery
• Neuromuscular stimulation
• Acute or chronic pain management
• Physiotherapy programmes
• Home rehabilitation programmes
• Clinical rehabilitation environments

Use should be consistent with the manufacturer's instructions and the advice of an appropriately qualified healthcare professional where required.

Technical Specifications

Output Information

The displayed amplitude is measured into a 500 Ω load. Actual current may be lower depending on electrode and skin impedance.

• At approximately 1000 Ω, maximum output is limited to approximately 70 mA
• At approximately 1500 Ω, maximum output is limited to approximately 65 mA

Burst Mode

Burst stimulation consists of bursts of 9 pulses at 200 μs, operating at either 150 Hz or 185 Hz over a two-second period.

Modulation Mode

The device includes modulation programmes that automatically vary pulse width and pulse repetition rate throughout treatment.

TENS 7

• Pulse width varies from approximately 50 μs to 250 μs and back over a six-second cycle
• Pulse rate also varies throughout the cycle

TENS 8

• Pulse width fixed at 200 μs
• Pulse rate varies from approximately 32 Hz to 100 Hz and back over a six-second cycle

Safety Features

Open Electrode Detection

If the device detects an open circuit on Channel A or Channel B, the output current automatically resets to zero.

Low Battery Protection

• The battery indicator flashes when battery voltage falls below approximately 6.9 V ±0.2 V
• The unit will not switch on if battery voltage falls below approximately 6.6 V ±0.2 V

Dimensions & Weight

• Dimensions: 119.2 × 69 × 28.7 mm
• Weight without battery: approximately 70 g
• Weight with battery: approximately 100 g
• Sizing: Universal device – no size selection required

Who Is It For?

The NeuroTrac Rehab NMES is suitable for individuals undergoing rehabilitation as well as physiotherapists and healthcare professionals who require a compact device capable of providing both TENS and neuromuscular electrical stimulation.

Its combination of preset programmes, customisable parameters, dual-channel operation and treatment tracking makes it a practical option for structured rehabilitation programmes.

Important Information

Electrical stimulation devices may not be suitable for everyone. Always read the manufacturer's instructions before use and follow the advice of your physiotherapist, doctor or other qualified healthcare professional where appropriate.

Do not use the device in circumstances specifically listed as contraindications or warnings in the manufacturer's user manual.
